Solar Roof Safety Guardrail System

Trust Engineering Roof Safety Guard Railing System is designed to provide reliable fall protection for commercial, industrial, and solar rooftop applications. Made from high-strength aluminum alloy, the system offers excellent durability, corrosion resistance, and easy installation without compromising roof integrity.

Designed to create a safe working environment around rooftop edges, walkways, and solar installations, our guardrail system helps protect maintenance personnel while meeting the requirements of modern rooftop safety solutions.

⚒AL6005-T5 Aluminum 🌿Corrosion Resistant 🔒Non-Penetrating Option ⚙Easy Installation

Rooftop safety guardrail system installed on solar roof edge

Aluminum roof safety railing close-up detail

Guardrail posts and rails assembly for rooftop edge protection

Roof safety guardrail around solar panel walkway

Completed rooftop fall protection railing system

Technical Specifications

Detailed parameters for the Solar Roof Safety Guardrail System — basic information and mechanical performance.

Basic Information

Product Name

Solar Roof Safety Guardrail System

Application

Rooftop Edge / Walkway / Solar Roof

Installation Type

Roof Mounting (Ballasted / Fixed)

Suitable For

Commercial / Industrial / Solar Rooftop

Rail Height

1100 mm (Customizable)

Top Rail Diameter

42 mm / 50 mm

Base Type

Ballasted / Fixed Plate

Material

AL6005-T5 Aluminum Alloy

Fasteners

SUS304 Stainless Steel

Surface Treatment

Anodized Aluminum (10-15μm)

Color

Silver / Customized

Warranty

10 Years

Service Life

25+ Years

Mechanical Parameters

Load Capacity

Meets rooftop safety load requirements

Wind Load

Up to 55 m/s

Ballast Weight

Custom per project (typical 25–50 kg/block)

Post Spacing

Customizable (standard 1200–1500 mm)

Corrosion

Anodized Alu + SUS304

Temperature

–40°C to +85°C

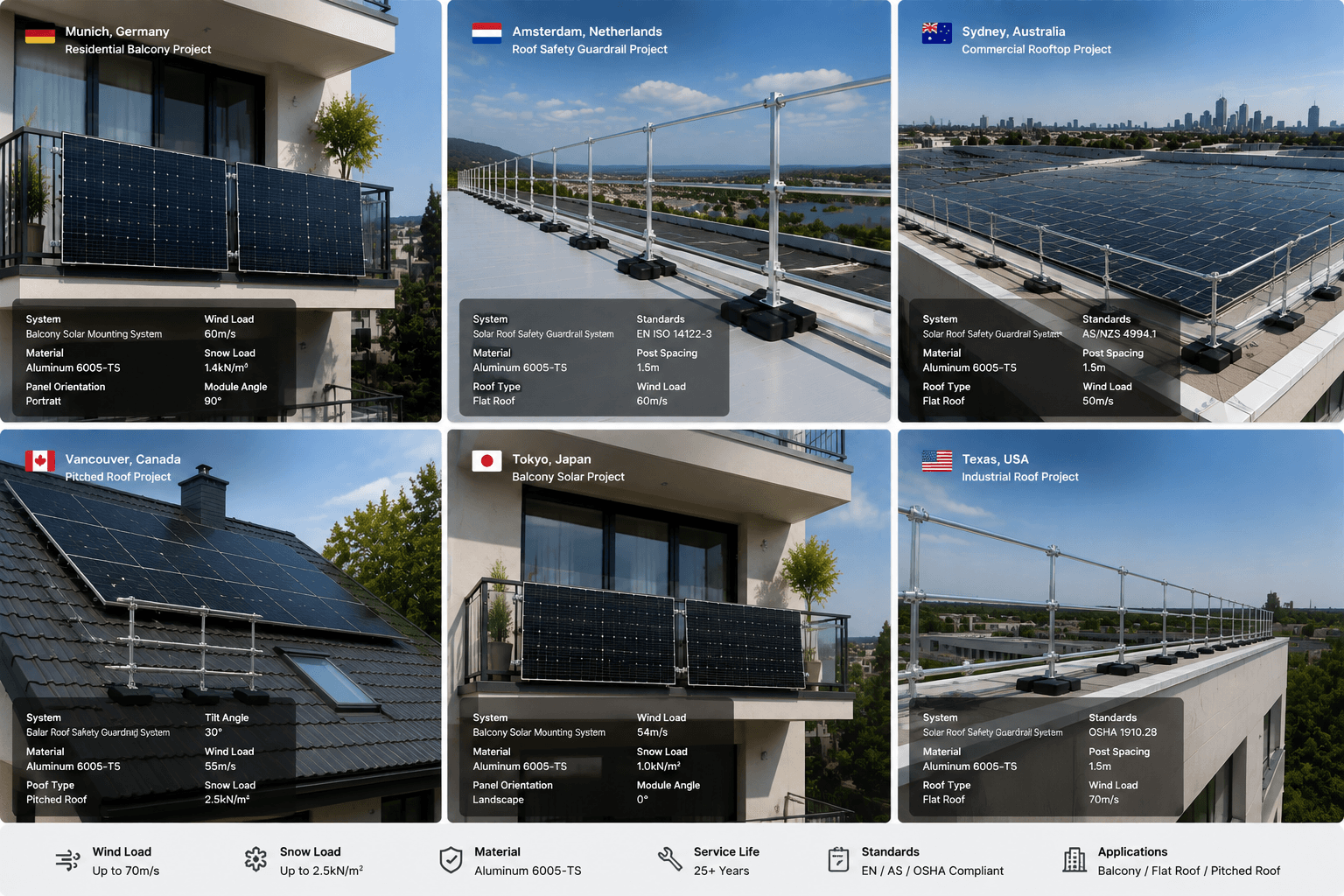

GLOBAL PROJECTS, TRUSTED PERFORMANCE

Solar Roof Safety Guardrail System | Trusted Performance on Rooftops Worldwide

Global Projects - Solar Roof Safety Guardrail System Trusted Performance Worldwide

Reliable Manufacturing. Proven Quality. Global Trust.

Over 10 years of expertise in solar mounting and rooftop safety systems, delivering certified quality and professional service to 50+ countries.

Factory Production

Engineering Design

Quality Inspection

Global Projects

Frequently Asked Questions

What types of roofs are compatible?▼

Our guardrail systems suit membrane, concrete, and steel-deck flat roofs as well as solar rooftops, with both ballasted and fixed mounting options.

Does the installation penetrate the roof?▼

The ballasted base is fully non-penetrating and protects the waterproof membrane. Fixed plates are available where higher wind or permanent stability is required.

What is the standard guardrail height?▼

Standard top-rail height is 1100 mm and fully customizable to meet local rooftop safety regulations and project requirements.

What wind load can it withstand?▼

The system is rated for wind speeds up to 55 m/s, with ballast weight calculated per project (typical 25–50 kg per block).

Do you provide OEM service?▼

Yes. OEM and ODM services are available, including customized rail height, color, base type (ballasted or fixed), logo, and packaging.
